How to set and edit colours for Agile board?

In order to set or change colors used in the Agile board, go to Administration > Agile. Second and third options apply to colors.


Status colors is used for visualisation. If you check this option in, you will see colorful lines under board columns' titles.

status colors.png

When you start the project, the default color setting is colored by issue. You can change it however to tracker, priority, assignee and others. You can even choose No colors.

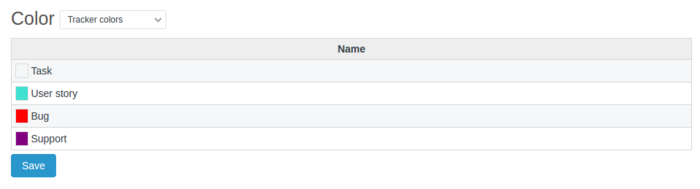

To edit colors, click on Manage colors.

colors edit.png

Click on a color you want to change and pick another one. In Agile settings you are able to edit colors for color by tracker and color by priority. Tracker colors are set as default.

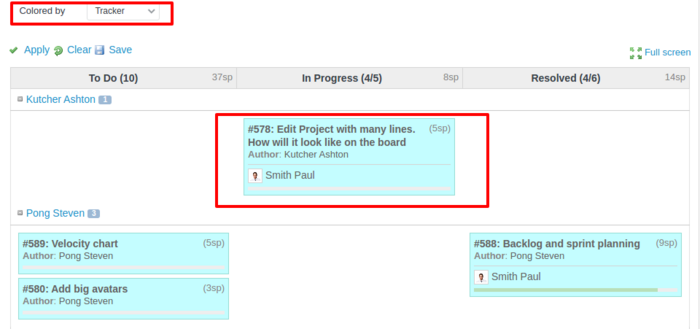

tracker color.png

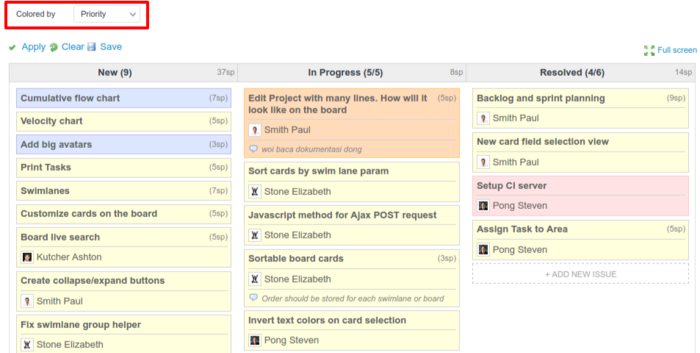

color by priority.png

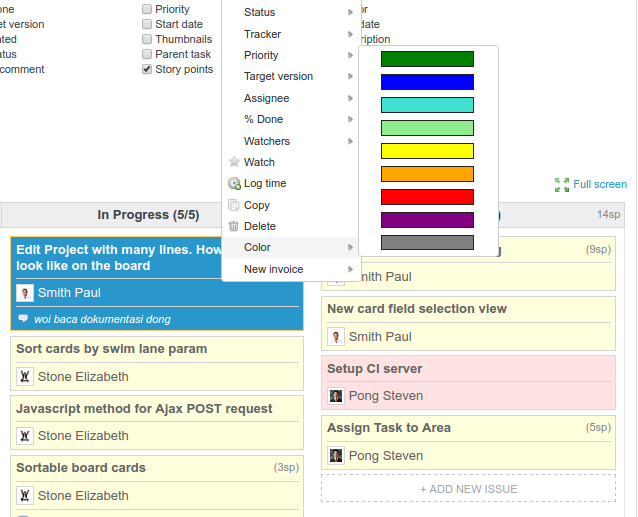

In order to change colors based on priority, click on the dropdown menu next to the Color and choose Issue priority colors.

change priority color.png

Don't forget to save your changes.

When it comes to other options, they can be accessed in the following ways:

  1. Issue - go to Edit issue
color edit issue.png

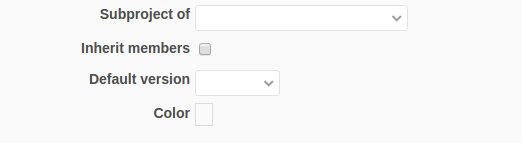

  1. Project - go to Project settings page
project color.png
  1. Assignee - color will be generated automatically from email hash
  2. Spent time - there are 5 predefined colors:
  • If there is no estimation time set in the issue, then it's card will be grey.
  • If time spent on the issue takes less or equal 80% from estimated time, then the card will be green.
  • If time spent on the issue takes more then 80% from estimated time the card will be yellow.
  • If time spent in the issue is bigger then estimated time the card will be red!
  • If time spent on issue is bigger then estimated time in 2 or more times then the card will be purple.

How to apply colors on Agile board

Go to your project and then click on Agile tab. You are able to change the way how issues are colored by manipulating in Options > Colored by.

colored by board.png

For example, if you choose to color your board by assignee, it will look like this:

colored by assignee board.png

Hint: you can add color to every card by yourself - just right click on the card and choose Color from context menu.
